Description

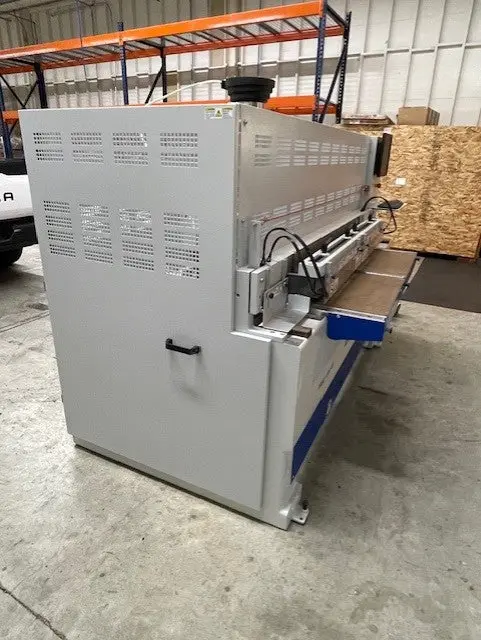

The SCM Omal HBD 1300 OF is a high-performance horizontal bore, glue, and dowel insertion machine engineered for exceptional precision, speed, and repeatability in cabinet, furniture, and component manufacturing. It automates the entire drilling, gluing, and dowel insertion process in one seamless cycle, producing perfectly aligned and durable joints while reducing operator error and cycle times.
Built for flexibility, the HBD 1300 OF features CNC-controlled movement with intelligent positioning and a user-friendly touch-screen interface for intuitive setup and operation. Programs can be quickly stored, recalled, and modified, making changeovers between jobs fast and efficient. Its robust construction and advanced motion control system deliver consistent accuracy across a wide range of panel sizes, materials, and production volumes.
Whether you’re running custom batch-one work or high-volume production, the HBD 1300 OF provides unmatched reliability, precision, and throughput—helping shops increase output while maintaining the highest standards of quality and craftsmanship.
All-in-one cycle: Automatic boring, gluing, and dowel insertion in a single operation for faster, more accurate assembly.
CNC-controlled X-axis: Ensures precise hole positioning and easy repeatability across different panel sizes.
Touch-screen interface: Simple programming, storage, and recall of drilling patterns and part setups.
High production efficiency: Reduces setup time and labor while improving consistency and output.
Adjustable working height: Accommodates various panel dimensions and applications.
Automatic glue dosing system: Applies the exact amount of glue for each dowel, ensuring strong and clean joints.
Heavy-duty frame and components: Built for long-term industrial use with reliable precision and stability.
Quick changeovers: Ideal for both batch-one and high-volume production environments.
Clean, low-maintenance operation: Efficient glue management and dowel feeding systems minimize downtime.
|
Working Capacity |
|
Maximum working length |
1300 mm (51″) |
|
Maximum panel thickness |
60 mm (2.36″) |
|
Minimum panel thickness |
12 mm (0.47″) |
|
Working height adjustment |
Manual or motorized (depending on configuration) |
|
Drilling Unit |
|
Drilling head |
Horizontal, single or dual spindle (depending on version) |
|
Drilling depth |
Up to 60 mm |
|
Drill bit diameter |
5–12 mm |
|
Drilling speed |
Variable, electronically controlled |
|
Dowel Insertion System |
|
Dowel diameter |
6–10 mm |
|
Dowel length |
25–50 mm |
|
Hopper capacity |
Approx. 500 dowels |
|
Insertion type |
Automatic pneumatic insertion with adjustable depth |
|
Glue Application |
|
Glue type |
PVA (standard) |
|
System |
Automatic glue dosing and injection |
|
Quantity control |
Adjustable per cycle |
|
Glue circuit |
Closed-loop to prevent clogging |
|
Feed & Positioning System |
|
Axis control |
CNC-controlled X-axis |
|
Clamping |
Manual or automatic (depending on configuration) |
|
Motion |
Linear guide rails for precision and durability |
|
Control System |
|
Interface |
10″ touch-screen HMI |
|
Programming |
Memory storage for multiple drilling patterns |
|
Diagnostics |
On-screen maintenance and error reporting |
|
Performance |
|
Cycle time |
Approx. 1.5–2.5 seconds per hole (depending on operation) |
|
Accuracy |
High repeatability and positional precision |
|
Electrical & Pneumatic |
|
Voltage |
230V or 460V, 3-phase |
|
Installed power |
Approx. 3–5 HP (2.2–3.7 kW) |
|
Air pressure |
6–8 bar (87–116 psi) |
|
Dimensions & Weight |
|
Length |
2300 mm (90.5″) |
|
Width |
900 mm (35.4″) |
|
Height |
1500 mm (59″) |
|
Weight |
Approx. 1,100 kg (2,425 lbs) |
