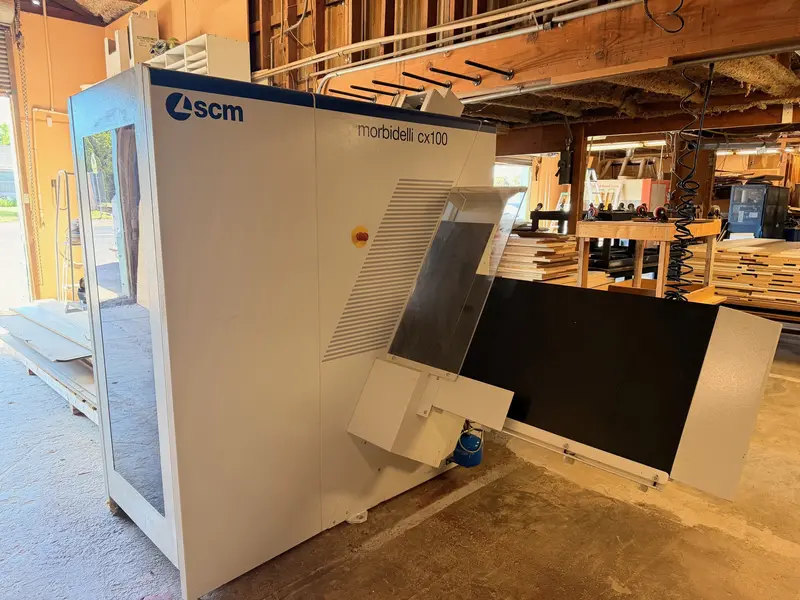

2019 Scm Morbidelli Cx100 Cnc Router (Used) 1
2019 Scm Morbidelli Cx100 Cnc Router (Used) 2

2019 Scm Morbidelli Cx100 Cnc Router (Used)

Original price was: $62,500.00.Current price is: $92.08.

In stock

Quantity
SKU: WSI-USEDSCMCX100 Category: Brand:

Description

This machine has less than 100 hours on it and is in excellent condition. Has been removed from power and is ready to ship.

FOB: Northern CA

Video

The drilling machine that carries out all drilling operations, grooving and vertical routings.

Very high productivity guaranteed, no operator’s intervention for the worktable tooling.

Advantages

PERFECT FINISH:
DRILLING FROM THE TOP
The system of drilling from the top uses the outside of the panel as a reference concealing defects; the result is to always move any difference in thickness to the inside of the cabinet.

PERFECT JOINTS: AUTOMATIC READING OF THE WORKPIECE LENGTH
Any discrepancy between the actual length of the panel and the one set is corrected by a precision reading laser allowing for perfect alignment.

EASY AND INTUITIVE:
MAESTRO SOFTWARE
CAD/CAM software designed and developed entirely by SCM in Windows environment that allows to program easily any element to be realized.
It provides the customer with all the tools necessary for the design, the management of the tools and related processes.

Technical data

Workpiece max. dimensions mm 3050x900x60
Workpiece min. dimensions mm 200x70x10
X-Y axes speed m/min 40
Independent vertical spindles n. 12
Independent horizontal spindles X direction n. 4
Independent horizontal spindles Y direction n. 2
Electrospindle motor power kW 5,5
